OINTMENT AND CREAMS PRODUCTION LINE

    • ointment and cream production line

ZARIADENIA NA VÝROBU KRÉMOV MASTÍ
LINIA PROCESOWA DO PRODUKCJI KOSMETYKÓW W SKALI PRZEMYSŁOWEJ

 Линия производства бальзамов, кремов, средств для ухода за кожей



Ask for the price

Catalogue

  • Line for production of ointments and creams
  • Line for the production of cosmetic and pharmaceutical products

Line is used for the preparation of sterile ointments, creams in the cosmetics, pharmaceutical, chemical industry and other industries.



 Cream, Structure, Fund, Baba De CaracolCream, Skin Care, Cream ColorsEgg, Ostrich Egg, Structure, Fund, Oval







Capacity 50kg·100kg·200kg·300kg·500kg

Fully automatic cream/ointment plant, untouched by human hands consist from:

  • Wax melting vessel
  • Water heating vessel
  • Manufacturing vessel
  • Storage vessel
  • Transfer pumps
  • nteconnecting Pipeline
  • Working platform

VACUUM MIXER



Designed for the mixed creams, pastes, wax, wet and powder mixtures. Vacuum mixer operates rotor-stator system. Between the rotor and the stator there is a vacuum that sucks the mixture of the product from top to bottom. Application of the forces in different directions are mixed, the addition of components to produce a stable product for a short time



Benefits of  products:homogenizator



  • Easy assembly / - easy maintenance
  • Hydraulic lifting the lid
  • High product quality and durability
  • Conserving energy, materials and processes
  • Flexibility with interchangeable tools
  • Flexible Efficient mixing and homogenization
  • The principle of the rotor / stator
  • Simple speed adjustment
  • Produced according to GMP standards
  • High hygiene

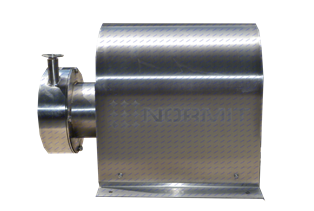

INLINE HOMOGENIZER





Inline homogenizer operates on the principle of rotor / stator. It is designed for mixing and homogenization. This model is suitable for the production of emulsions and suspensions in a wide range of viscosity. The processing of emulsions, the machine achieves droplet size to 1 micron, for solids (powders) there is a thorough dispersion of particles. The product is supplied to the pump by means of a homogenizer. The product is subject to the initial stage of mixing, and then passed through a homogenizer. Excellent product quality is guaranteed thanks to high shear forces acting on the product. The main application of this model is to enter into a functional system, but can also be mounted under vacuum in a horizontal or vertical position. Knives are easily removed and replaced by other, thanks to a homogenizer very versatile and flexible. The distance between the blades and the wall is designed to be easy to clean.



Homogenizator InlineHomogenizator InlineHomogenizator Inline







FILLING MACHINE



The speed and performance of the dose can be adjusted. Filling accuracy is very high. It is made of stainless steel, so that we achieve the highest quality and hygiene. On the basis of the potentiometer is reduced to the loss of 0.5%.



 Product Benefits

Plnicka

  • Automatic / semi-automatic model
  • Suitable for filling into aluminum containers, plastic laminate
  • Capacity from 60 to 180 tubes per / min.
  • Easy replacement heads
  • Even for oval tubes
  • GMP documentation
  • Performance range: 25 to 60 ml, 50-125 ml, 100-250 ml, 200-500 ml


Option

  • combined model

Production of cosmetic creams, gels, ointments, emulsions, and other cosmetic and pharmaceutical homogeneous products, which do not require heating during manufacturing. For the pharmaceutical industry

Homogenizers YUMIX 3, 5.5, 7



Technical parameters



Model UPS-100 UPS-300 UPS-500 UPS-1000
Volume 100 300 500 1000
Power kW 0,55 - 1,1 0,75-1,5 1,5-1,7 2,2-3,7

Power (heating), kW
12 15 30 45



МPU 100 - 1200

It is used in the manufacture of cosmetic creams, gels, ointments, emulsions, and other cosmetic and pharmaceutical homogeneous products, which are heated and cooled during production. For the pharmaceutical industry.



Model МPU-100 МPU-300 МPU-600 МPU-1200
Volume, l 100 300 600 1200
Power, kW 0,55 - 1,1 0,75 - 1,5 1,5 - 2,7 4 - 7
Power- heating, kW 15 30 45 45



Catalog
